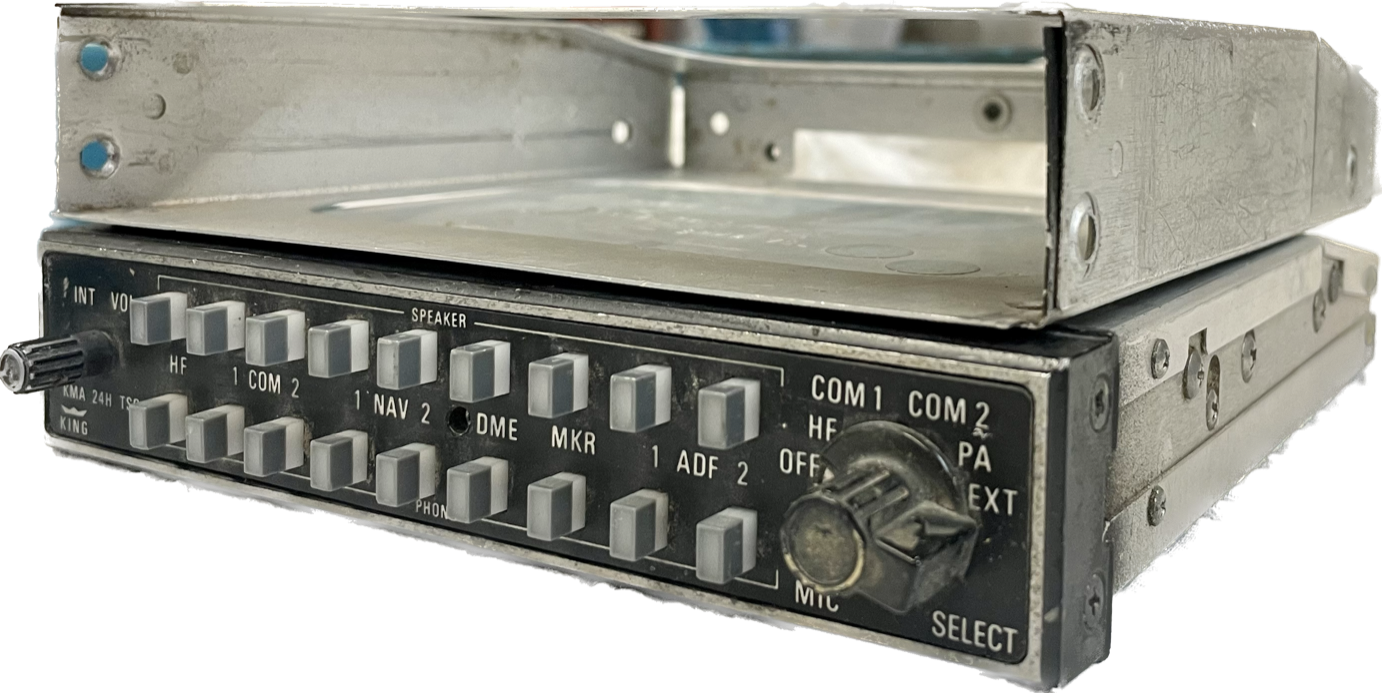

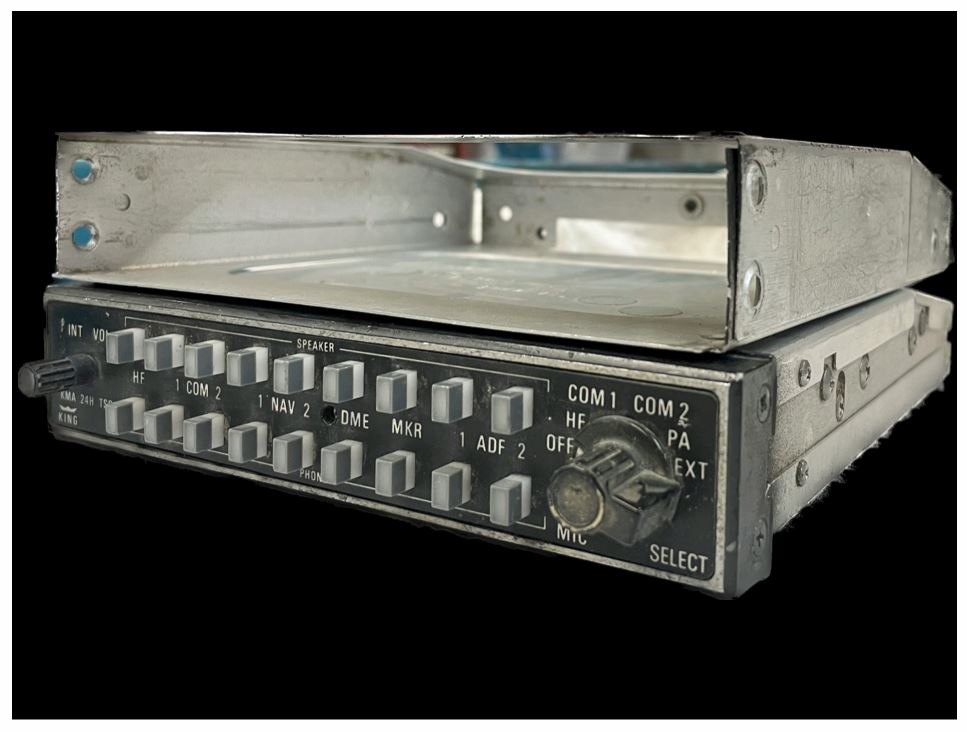

Compact, fully solid-state unit containing pushbutton audio selector panel with seperate speaker and headphone isoaltion amplifiers
Styled to match with the other King Silver Crown units but can be integrated into any 500 ohm output audio system
Provides interphone communication including five microphone audio inputs for up to five intercom stations to meet crew member helicopter and fixed wing needs

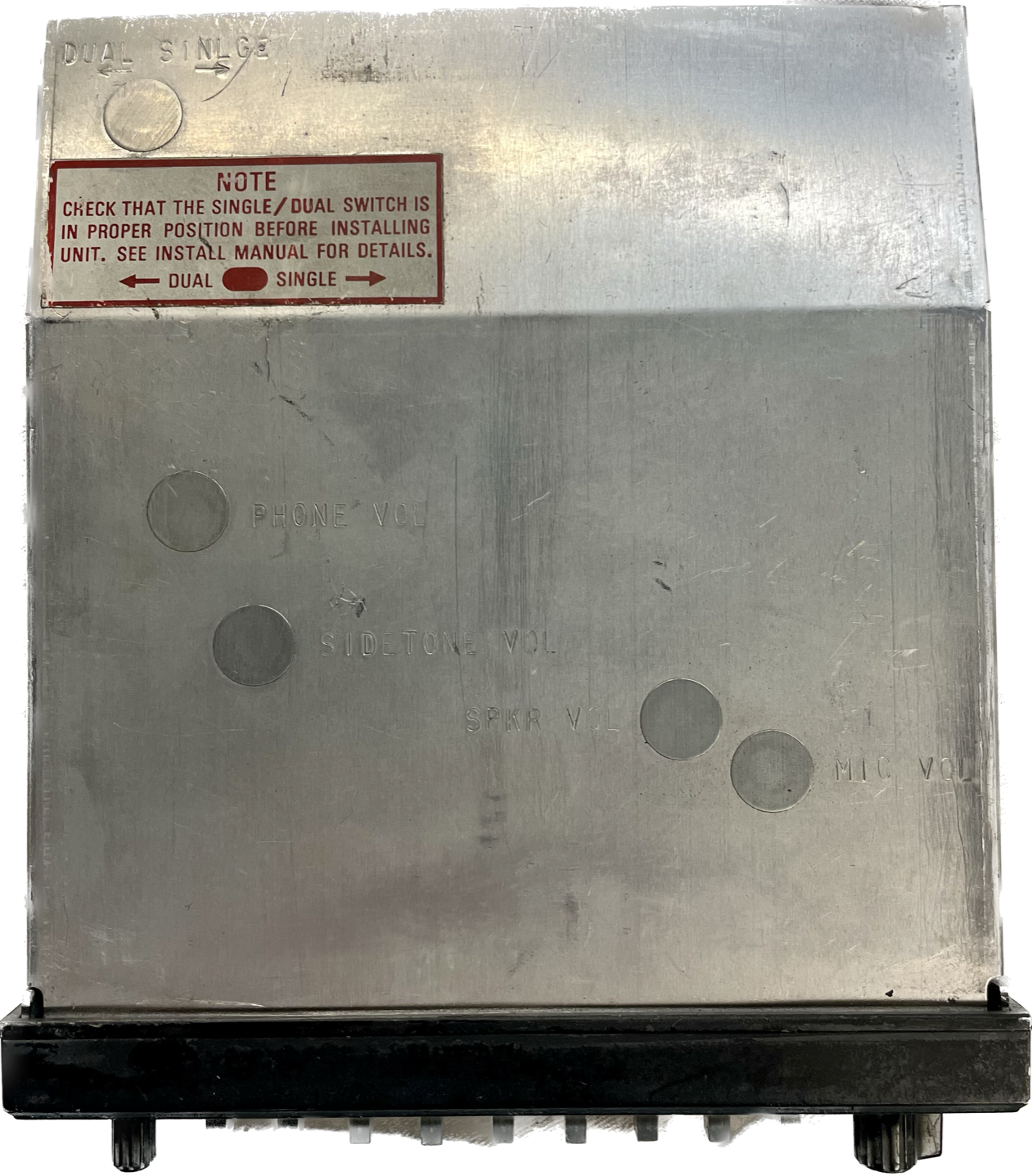

Designed for use in both single and dual audio panel installations
Can handle as many three transceivers and six receivers
Models with different features and combinations of AUTO, 2 COMMs, 2 NAVs, DME, MKR, ADF, HF, TEL selections (see table below for selections)
Night vision goggle version available (see table below)
Has two unswitched inputs for use as altimeter warning and telephone ringer
Has speaker outputs for ramp hailer and passenger address or intercom
PA mute provided to mute passenger background music systems when a microphone is keyed
Similar to KMA-24 but DOES NOT include marker beacon presentation and DOES include intercom functions/controls
