011-00779-00 - Garmin GTX-33 Remote Transponder

011-00779-00 - Garmin GTX-33 Remote Transponder

$675.00 CAD
$675.00 CAD
Sale Sold out

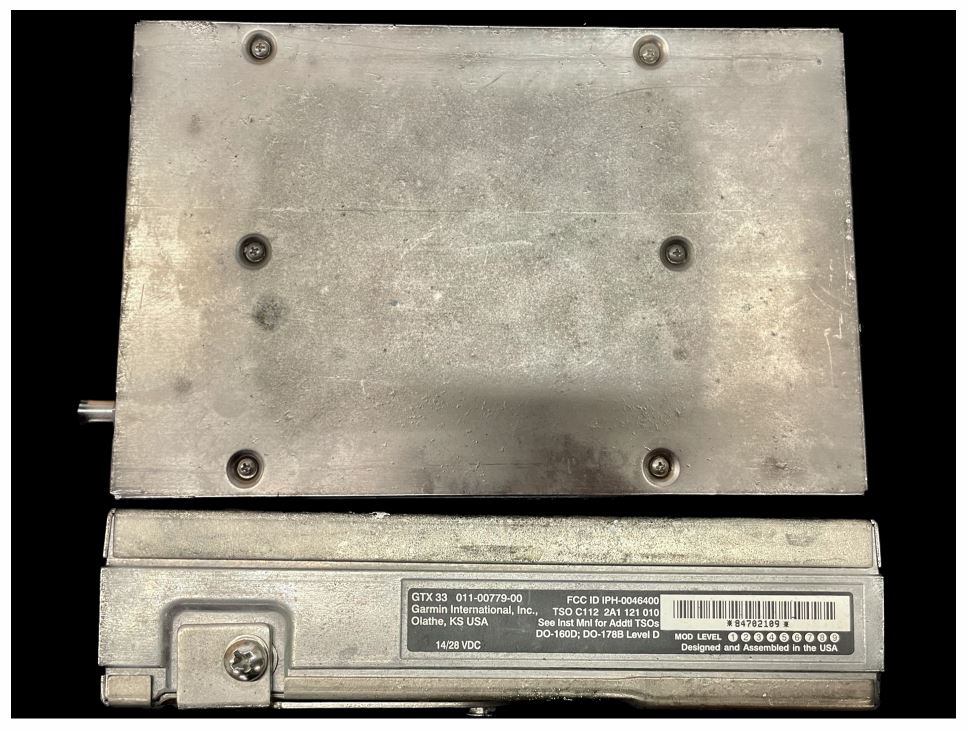

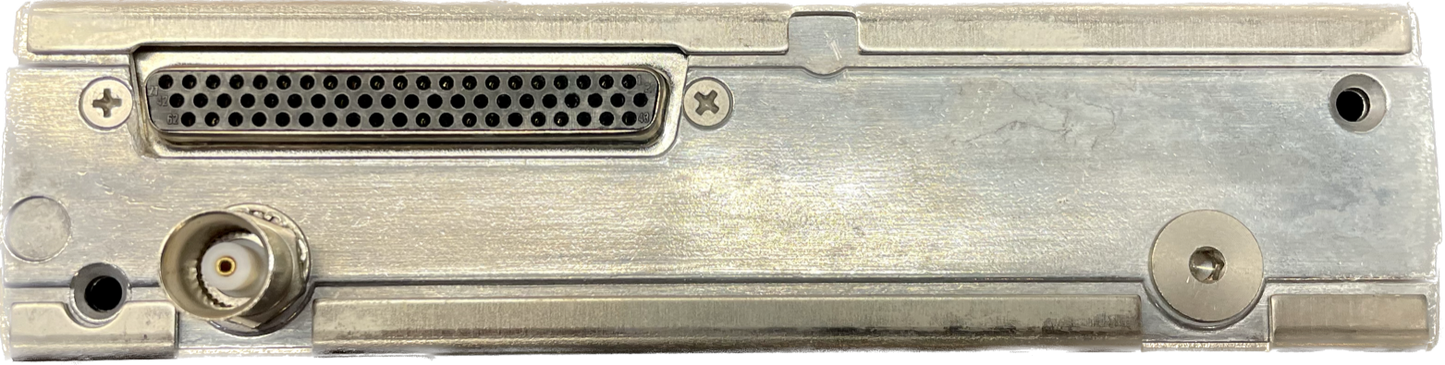

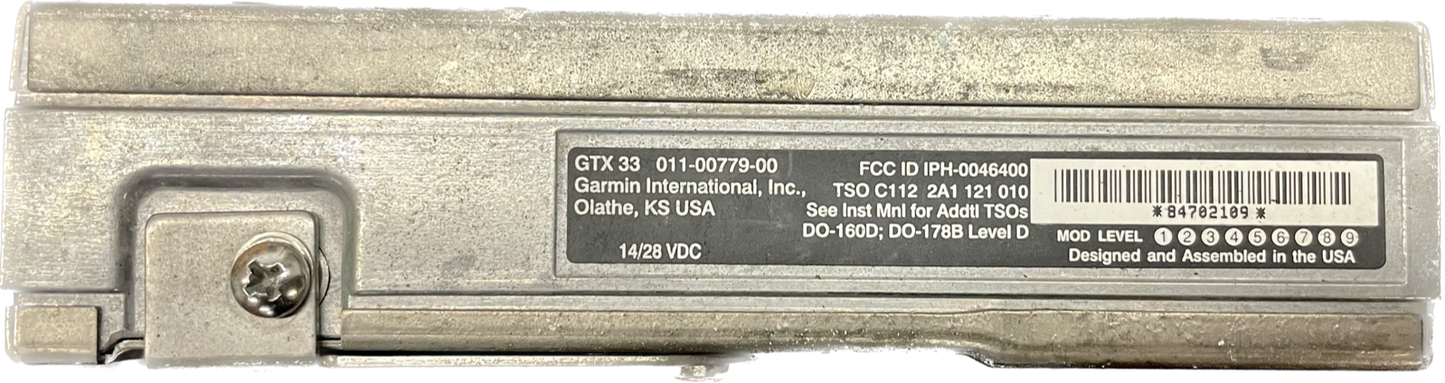

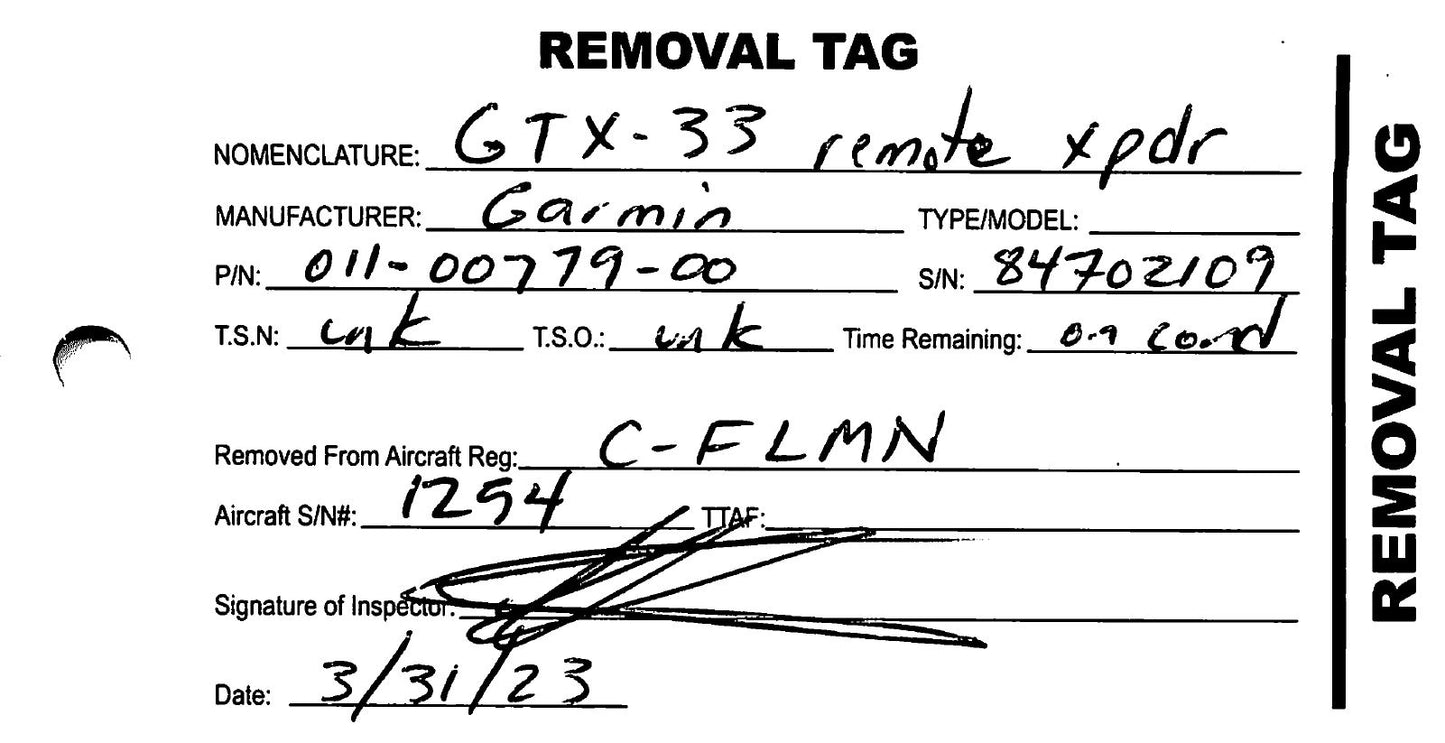

Removed serviceable from non-incident aircraft for avionics change.
GTX 33

FEATURES
  • Remote Mount Mode S Digital Transponder
  • Version Options Available - See Part Number Chart below for more Details
  • IFR certified unit features traffic datalink capability and meets European mandates for Mode S Level 2 surveillance
  • Solid-State Design
  • Delivers up to 250 watts of nominal power output
  • Includes remote ident and auto standby, TIS interface, and altitude monitor with voice alerts
  • With available Extend Squitter (ES), versions of the GTX 33 are a pathway to ADS-B compliance for FAA's proposed Next Gen airspace system
  • Certified to TSO-C166a standards for 1090 MHz extended squitter transmission
  • ES works seamlessly with existing ATC protocols
  • All the features of the standard GTX 33 transponder are retained in the ES version
  • Antenna diversity option is available with GTX 33D versions
  • Traffic data enabled by remote GTX 33 system can be displayed graphically on Garmin's integrated GPS/Comm/Nav systems that provide built-in transponder code selection

 SPECIFICATIONS

DIMENSIONS:  6.29"W x 1.78"H x 11.05"D WEIGHT: 3.1 lbs (unit only)
DISPLAY TYPE: Digital VOLTAGE RANGE: 11-33
TEMPERATURE RANGE: -45°C to +70°C ALTITUDE: 55,000 feet
TRANSMITTER FREQUENCY: 1090 MHz ± 1 MHz TRANSMITTER POWER: 125 Watts min, 250 Watts nom
RECEIVER FREQUENCY: 1030 MHz RECEIVER SENSITIVITY: -74 dBm nom for 90% replies
MODE A CAPABILITY: 4096 Ident Codes MODE C CAPABILITY: 100' increments from -1000 to 62,700' 25' increments from -1000 to 50,175' w/suitable serial data altitude
MODE S CAPABILITY: Selective Ident Codes, Aircraft Type EXTERNAL SUPPRESSION INPUT: Low ≤ 0.5V; High ≥ 8V
EXTERNAL SUPPRESION OUTPUT: Output: min +18V (300 ohm load) & max +23V (2000 ohm load) AUDIO OUTPUT: 4.04 Vrms to 7.85 Vrms into 500 ohm load
POWER INPUT: 22 Watts Typical, 45 Watts Max MAX FULL TSO REPLY RATE; 1200 PRF, CODE 7777: 1.6A @ 27.5 Vdc, 3.1A @ 13.75 Vdc
MAXIMUM QUIESCENT: 0.85A @ 27.5 Vdc, 1.1A @ 13.75 Vdc SQUAWK CODE SELECTION: Remote entry through CNX 80, GNS 480 or G1000
SOLID-STATE TRANSMITTER: Yes VERBAL ALERTS: Yes
TIS ALERTS COMPATIBLE: Yes OUTSIDE AIR TEMPERATURE DISPLAY: No
PRESSURE ALTITUDE READOUT:

No

 ALTITUDE MONITOR FUNCTION: No
DENSITY ALTITUDE READOUT: No BUILT-IN TIMERS: No
AUTOMATIC ALT/GND MODE: Yes DIVERSITY: No
PANEL-MOUNTED: No
COMPLIANCE: TSO-C112, CLASS 2A; RTCA DO-239; ETSO-2C112B, CLASS 1 LEVEL 2S, LEVEL 2ES; TSO-C166A, B0, B1; DO-178B, LEVEL C; DO-254, LEVEL C; ETSO-C166A, B0, B1; ICAO ANNEX 10, AMENDMENT 77; DO-178B, LEVEL D
