Westcan Aircraft Auction

R0103A105 - 9 Man Life Raft

R0103A105 - 9 Man Life Raft

Regular price $5,395.00 CAD
Regular price Sale price $5,395.00 CAD
Sale Sold out

These are $6518.54 USD NEW.  Being sold as "as removed"

THESE UNITS WILL COME WITH A FRESH CERTIFICATION FROM TALON AIR SERVICES

13 available

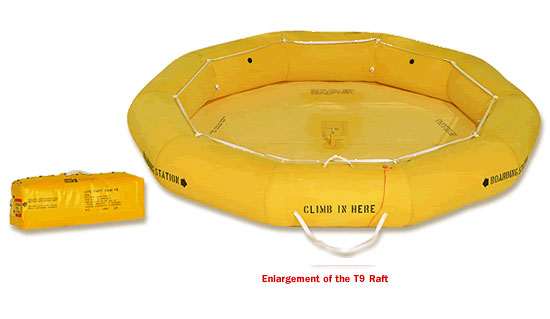

Life Raft (T9), Classic Raft, Single Tube, FAA Type II, 9-Man

Non-Transport Series single tube life rafts are intended for crewmember and passenger use aboard aircraft during over water emergencies.  These rafts are comprised of a circular flotation tube compartmentalized into two chambers by vertical bulkheads and a fabric deck which is attached to the tube structure.  Neoprene coated nylon fabric is used throughout each raft design.  A combination life line/grasp assists in boarding.

These life rafts have a lanyard-activated, manually-operated carbon dioxide (CO2) inflation system.  A manually-operated hand pump, secured to the boarding station handle affords full inflation, or topping off of the flotation chambers, if required.  Each of the two compartmentalized chambers in maintained to equal pressure by individual pressure relief valves – one in each chamber.

  • Rated Capacity: 9Persons
  • Overload Capacity: 13 Persons
  • Total Tube Buoyancy: 1676 lbs. (760.23 kg)
  • Deck Area per Person (at rated capacity): 3.70 sq ft (0.34 sq m)Custom Packs Available.
    Radio Beacons, Emergency locator Transmitters,
    Watermakers and Specialized Survival Kits Available.
    Notes:
  • Dimensions and weights shown are nominal and do not allow for pack expansion or swelling.
  • Tolerances of actual pack dimensions:
    -For dimensions of 5.5 inches and less = -0.25/+1.0 inches.
    -For dimensions greater than 5.5 inches: = +/- 0.5 inches.
  • For stowage compartment clearance, allow additional 0.5 to 1.5 inches in excess of final pack dimensions.
  • Tolerance of actual pack weight = +/- 3.0 lbs.
  • Allow additional 2.0 to 4.0 lbs weight when ELT installed.
